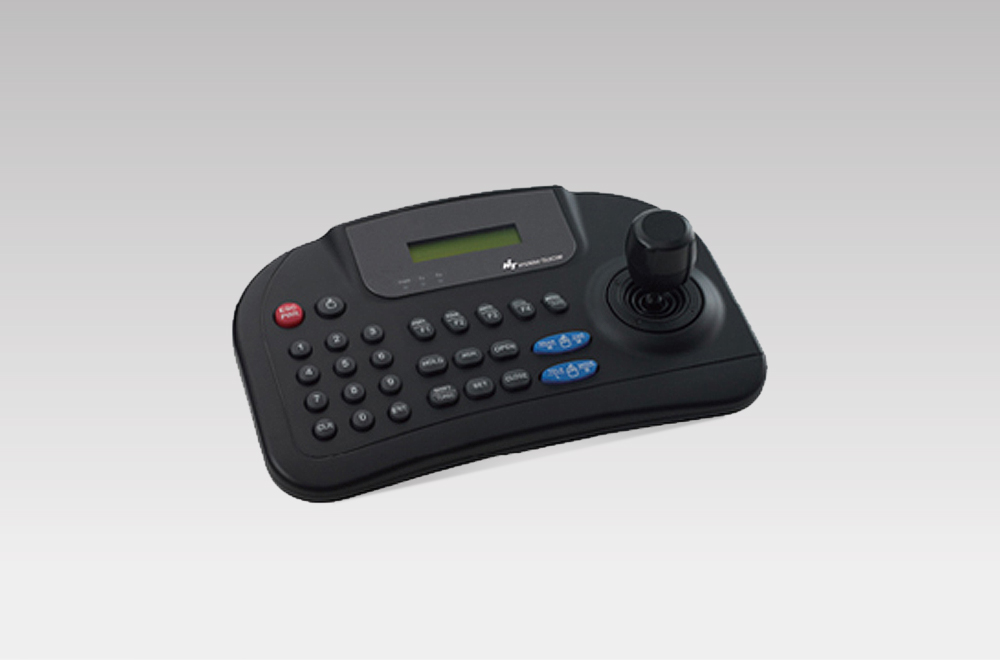

Model | HIP-2000 |
---|---|
Keyboard Communication | Interface : RS-485 / RS-422 |
Operrating distance : 4000ft(1.2Km) on 24 AWG wire | |
Protocol : Multiple (Pelco-D,Pelco-P,WONWOO,ETC.)(Baud rate Selectable) |
|
Connector Type Data | TERMINALBLOCK(8p) |
Keyboard Button | Rubber button |
Numberic keypad and camera function key | |
Joystick | stick 3-axis, variable speed with zoom |
Input Voltage | DC 12V or 9Vbattery (battery mode) |
Power Consumption | Max. 140mA |
LCD Display | Graphic display 16 character x2lines |
Operating Temperature | 0℃ ~ 45℃ |
Humidity | 10%~70% Non-condensing |

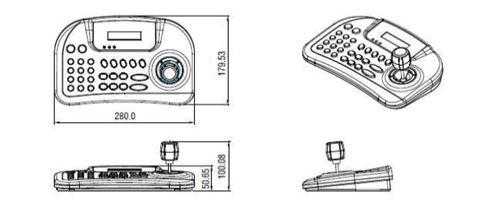

Dimension | 280(w)x 100.08(h) x 179.3(d)mm |
Weight | 0.7kg |
Packaging includes | HIP-2000 KEYBOARD, ADAPTOR |
Includes : USB CABLE, MANUAL, TERMINAL, BLOCK(8p) |
