HCR-4816S1
Analog DVR.
Quick Setup to designate Recording Period
Emergency & Intensive Recording
Dual-Stream with Adjustable fps and Resolution
Network Bandwidth Control (25 Kbps ~1000 Mbps)
Smart Phone Monitoring
Help Message Pop-up just by One Mouse-Click
Time Synchronization by NTP Server
Specifications For HCR-4816S1
| MODEL | HCR-4816S1 (16 Ch) | |
|---|---|---|
| Compression Algorithm | Video : H.264, Audio : G723.1 | |
| HDD Bay | 3 x SATA HDD or 2 x SATA HDD & 1 x DVD | |
| Operating System | Embedded Linux | |
| Video | Input | 16 Ch |
| Loop-Out | Not Available | |
| Video Mode | NTSC/PAL Selectable | |
| Display Speed (NTSC/ PAL) | 480/400 fps | |
| Screen Modes for Live Display | 1, 4, 9, 16 & PIP | |
| Video-Out | Monitor | 2 x Main Monitor (Composite & VGA) & 1 x Spot Monitor (Composite) |
| Resolution | VGA Resolution : 640x480, 800x600, 1024x768 & 1280x1024 (Selectable) | |
| Recording Speed (NTSC/PAL) |
352x240/288(CIF) | 480/400 fps |
| 720x240/288(2CIF) | 240/200 fps | |
| 720x480/576(D1) | 120/100 fps | |
| Recording Resolution | NTSC : 352x240, 720x240, 720x480,PAL : 352x288, 720x288, 720x576 | |
| Recording Modes | Continuous, Scheduled, Sensor-Activated & Motion Detection Recording | |
| Pre & Post Alarm Recording, Emergency Recording, Quick Backup | ||
| Playback & Search | Speed | x1, x2, x4, x8, x16, x32 |
| Playback Channel | 1, 4, 9 & 16 Ch Real-Time Playback at CIF (30/25 fps per Ch) | |
| Function | Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search | |
| Audio Input / Output | 1 Ch Input / 1 Ch Output | |
| Alarm Input / Relay Output | 4 Ch / 1 Ch | |
| P/T/Z Control and Port | Virtual Joy-Stick Control on screen by Mouse | |
| Pan/Tilt/Zoom/Focus/Iris, RS-485 Port | ||
| LAN | Gigabit Ethernet (RJ45) | |
| Fixed IP, DHCP & DDNS | ||
| Network Function | 1) Dual-Stream (Local Recording & Network Transmission) | |
| 2) Network Bandwidth Control (25 Kbps ~ 1000 Mbps) | ||
| 3) Live Monitoring, Remote Playback and File Backup (Triplex-on-Remote) | ||
| 4) Auto IP Detection (DHCP) | ||
| 5) Time Synchronization by NTP Server ("pool.ntp.org") | ||
| 6) Remote & E-Mail Notification, Remote System Reboot by IE, Remote PTZ Control | ||
| 7) uPNP NAT Traversal (Port forwarding) | ||
| Remote Management |
Software | CMS & MMS (MobileViewer) & MacViewer (S/W for Mac OS) |
| Web (IE) | Live Monitoring, Playback & System Configuration | |
| Backup Device | Internal | DVD Burner (Option) |
| External | Local Backup by USB ODD and Network Backup by CMS | |
| System Recovery after Power Failure | Auto-Reboot and Journaling File System | |
| Advanced Functions | 1) Firmware Upgrade by USB & CMS over Network | |
| 2) Automatic Upgrade of DVR F/W by PUSH Notice | ||
| 3) Import & Export of Setting Value, Water-Mark, AVI File Backup | ||
| 4) Quick Setup to designate Recording Period | ||
| 5) HDD SMART Info (Model, Capacity, Bad Sector, Temperature, Used Period) | ||
| 6) Warning Alarm for System Over-Temperature | ||
| 7) Help Message for easy setup & Multi-Language support | ||
| POS | Text-in Based (RS232, USB to Serial support, TCP/IP Network) | |
| Display POS Data on Live & Playback | ||
| e-SATA | N/A | |
| System Operation | Front Button, IR Remote Controller, USB Mouse, Keyboard (Option) | |
| Power | 12V x 5A D/C | |
| Operating Temperature and Humidity | 5~40 ℃ / 20~80% RH | |

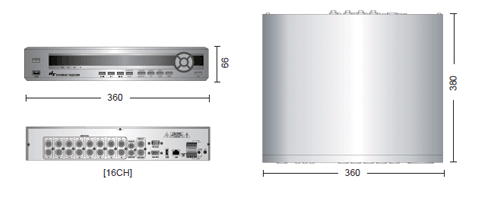

| Dimension (WxDxH) | 360 x 380 x 66 (mm) | |
| Certification | CE & FCC & MIC & WEEE, RoHS | |
